Ball Bearing Plastic Impeller Industrial Ventilation Fans Air Cleaner Fans 110V

Name: Ball Bearing Plastic Impeller Industrial Ventilation Fans Air Cleaner Fans 110V
Brand: TOPFAN/ODM/OEM
Price: 3 USD

China Ball Bearing Plastic Impeller Industrial Ventilation Fans Air Cleaner Fans 110V wholesale

Brand Name : TOPFAN/ODM/OEM

Model Number : MX9225ABH11

Certification : CE/ROHS

Place of Origin : China

MOQ : 500pcs

Price : US$3 - 5

Payment Terms : T/T, Western Union

Supply Ability : 600,000pcs per month

Delivery Time : 5-12 working days after received your payment

Packaging Details : carton

Product Name : AC Cooling Fan

Voltage : 110V / 220V

Frame : Aluminum

Impeller : Plastic

Bearing type : Ball Bearing/Sleeve bearing

Motor : Impedance Protected

Size : 92*92*25mm(3.2*3.2*1Inch)

Contact Now

110V Air Cleaner Fans / 92x92x25mm fridge Fan , AC Fridge Cooling Fan

92x92x25mm AC 110V Air Cleaner Fans , long life expectancy and low noise , are widely used in network communications, as well as industrial production equipment, medical equipment, home appliances, etc.

Description:

110V AC FAN, used for cooling and ventilation.
Frame: Aluminum ADC-12,Painted Black
Impeller: Plastic With 7 Blades
Stator& Rotor: Silicon steel
Magnet Wires:Copper 1 PEW
Bobbin: PA-66 UL 94 V-0
Bearing Type: Ball Bearing

Specification

Model	MX9225ABH11
Outline Dimension	92x92x25mm
Rated Voltage	AC 110V
Voltage Range	AC 100V~140V
Frequency	50/60Hz
Rated Current	0.10/0.08A±10%
Power Consumption	15/10W±10%
Speed	2400/2700RPM±10%
Max. Air flow	43/47CFM±10%
Max. Static Pressure	0.15/0.20Inch-H2O
Noise Level	37/41dB(A)
Weight	350g
Dielectric Strength	1800V/0.5mA/3s
Temperature Test of Run	t=<70K
Locked Rotor Protection	t=<130K
Environmental Specification	Operating Temperature:-20℃~85℃ Operating Humidity:20%~85%RH Storage Temperature:-30℃~140℃ Storage Humidity:20%~95%RH

Product Tags:

refrigerator cooling fan

high airflow fan

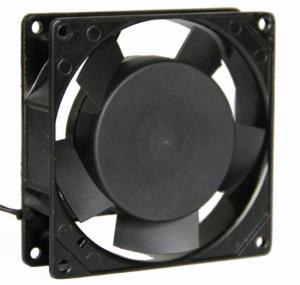

Ball Bearing Plastic Impeller Industrial Ventilation Fans Air Cleaner Fans 110V Images
