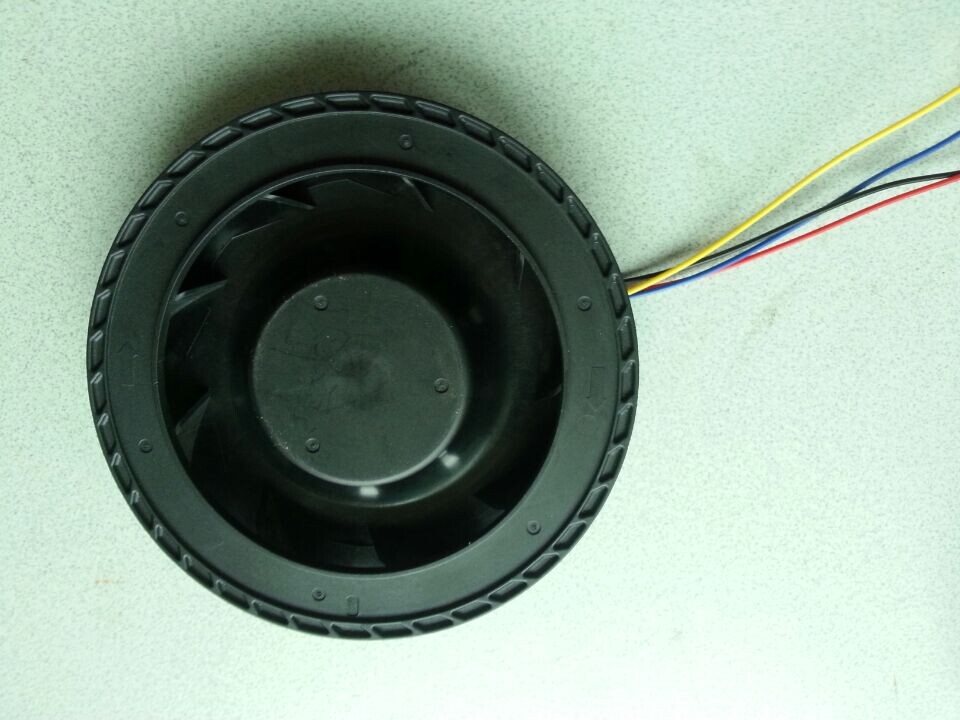

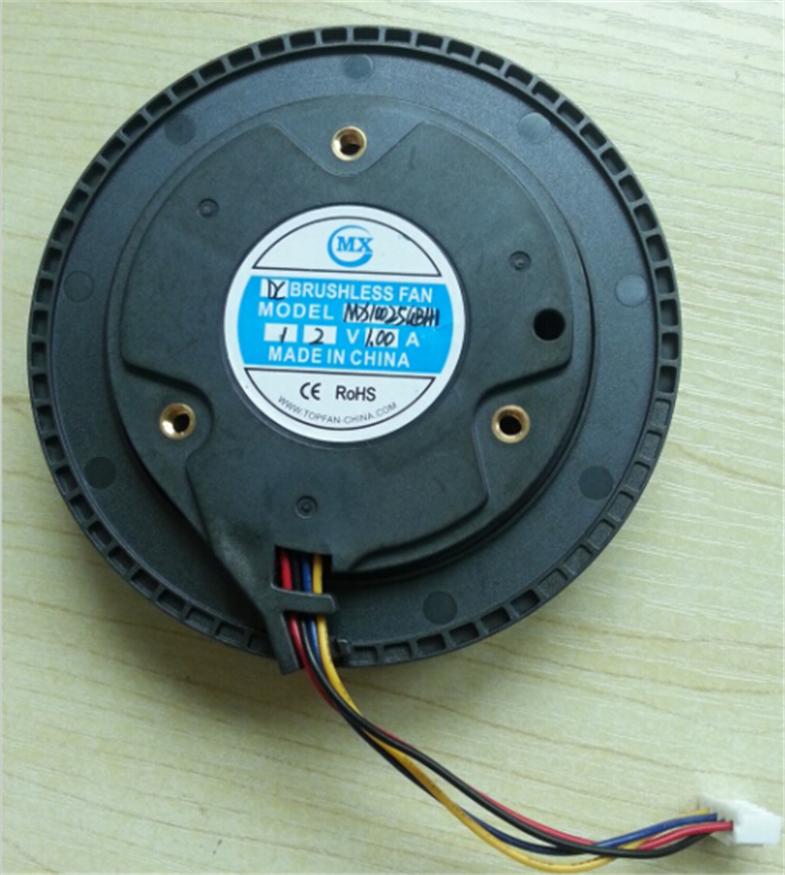

12V - 24V Plastic DC Centrifugal / DC Brushless Fan for Air Purifier 100mm
Applications:
- Ventilation Equipment & System
- Heating Equipment & System
- Air Conditioner
- Refrigeration equipment
- MDBS(Mobile Data Base Station)
- Telecom power supply station
Description:
● 100*25mm centirifugal fan
● High speed , Middle speed, Low speed
● Plastic Frame or Die-Cast Aluminum Frame and Plastic impeller
● 7 blades or 9 blades
● 12V DC 24V DC or 48V DC
● Ball bearing or Sleeve bearing or Hydraulic bearing
● Terminal or Lead wire
● Waterproof explosion proof or high proof are can be satisfied.
A. ELECTRICAL:
Standard operating condition is 25℃, 65%RH ambient, unless otherwise
specified.
- Rated Voltage : 12V ±10%
- Rated Current : 1.00Amp (Typical)
- Rated Power : 12W
- Starting Voltage : 15V (Max.)
- Speed : 4800RPM ±5%
- Acoustical Noise : 59dB(A)(measurement tolerance ± 5 dBA)
- Static Pressure : 25.27mm-H2O
- Air Flow : 46.43CFM
- Direction of rotation : Counter-anticlockwise
B. MATERIAL:
Impeller | PBT |
Frame | PBT |
Bobbin | PBT UL94-V0 |
| Lead Wire | +:Red –:Black PWM:Blue FG:Yellow | UL 1007 AWG 26 |
| | | |
C.MECHANICAL
| Dimensions | L * W * H =100*100*25 (mm) |
| Weight | 168 grams |
| Standard operating temperature range | -10 ℃ ~ 75 ℃ |
| Standard storage temperature | -20 ℃ ~ 80 ℃ |
| Bearing system | Ball Bearing |
D.EXPECTED LIFE SPAN (MTBF):
At a standard operating condition of 25±5℃, 65±5%RH ambient
Ball Bearing:60000 hrs , Continuous operating under 25℃ 65%RH
Ball Bearing:20000 hrs , Continuous operating under 75℃ 65%RH

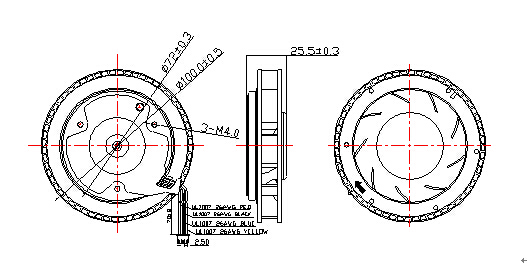

E: Dimensions (Unit:mm)
NOTES:
a. UNIT: MM
b. LEAD WIRE:UL1007 26AWG
PIN 1 : RED WIRE------(+)
PIN 2: BLACK WIRE------(-)
PIN 3: BLUE WIRE------( PWM)
PIN 4: YELLOW WIRE------( FG)
