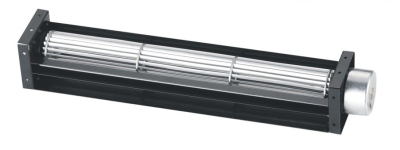

Elevator Cross Flow Fans With Aluminum Impeller 43mm X 240mm / DC Flow Cooling Fans low noise and long life expectancy

Brand Name : MX

Model Number : MX43240CPM2

Certification : CE / ROHS

Place of Origin : China

MOQ : 500pcs

Price : us $ 8 / pcs to us $ 15 . 00 / pcs , and negotiation

Payment Terms : T / T or western Union

Supply Ability : 600 , 000pcs per month

Delivery Time : 10 - 15 working days after received your payment

Packaging Details : carton box

Voltage : 24V

Diameter : 43mm

Length : 240mm

Bearing type : Ball Bearing&Sleeve bearing

Material : Metal

Model : MX43240CPM2

Contact Now

Elevator Cross Flow Fans With Aluminum Impeller 43mm X 240mm / DC Flow Cooling Fans low noise and long life expectancy

1 Motor type DC Brushless type

2 Expeceed Life

Ball Bearing 50 , 000 hours

Sleeve Bearing 30 , 000 hours

We can also provide fans with longer use times

3 ELECTRICAL CHARACTERISTICS

ALL MEASUREMENTS PERFORMED AT 25 ~ 30 ℃ ROOM TEMPERATURE
& 50 ~ 80 % R . H . UNLESS OTHERWISE SECIFIED .

1	RATED VOLTAGE	VOLTS	V	24 VAC
2	ROTATION SPEED	RPM	RPM	2700 ± 10 %
3	ACOUSTICAL NOISE ( AVG )	dB ( A )	dB ( A )	≤ 43	DETAILS SEE ATTACHED PAGE .
4	MAX . AIR - FLOW	CFM	Q	78	TWO - CHAMBER METHODS DEAILS SEE ATTACHED PAGE .
5	MAX . AIR - PRESSURE	mmH₂O	P	1	TWO - CHAMBER METHODS DEAILS SEE ATTACHED PAGE .

4 MECHANICAL

BEARING SYSTEM ------------------3 BALL BEARING .
LEAD WIRE ---------------- 1007 AWG # 24 , 80 ℃ , 300V ,
+ POSITIVE ------------- RED
-- NEGATIVE ----------- BLACK
5 ENVIRONMENTAL

OPERATING TEMPERATURE ---------------------- - 20 TO + 50 ℃ ( CLASS E )
STORAGE TEMPERATURE ------------------------- - 30 TO + 75 ℃
OPERATING HOMIDITY ----------------------------------- RH 20 % - 80 %

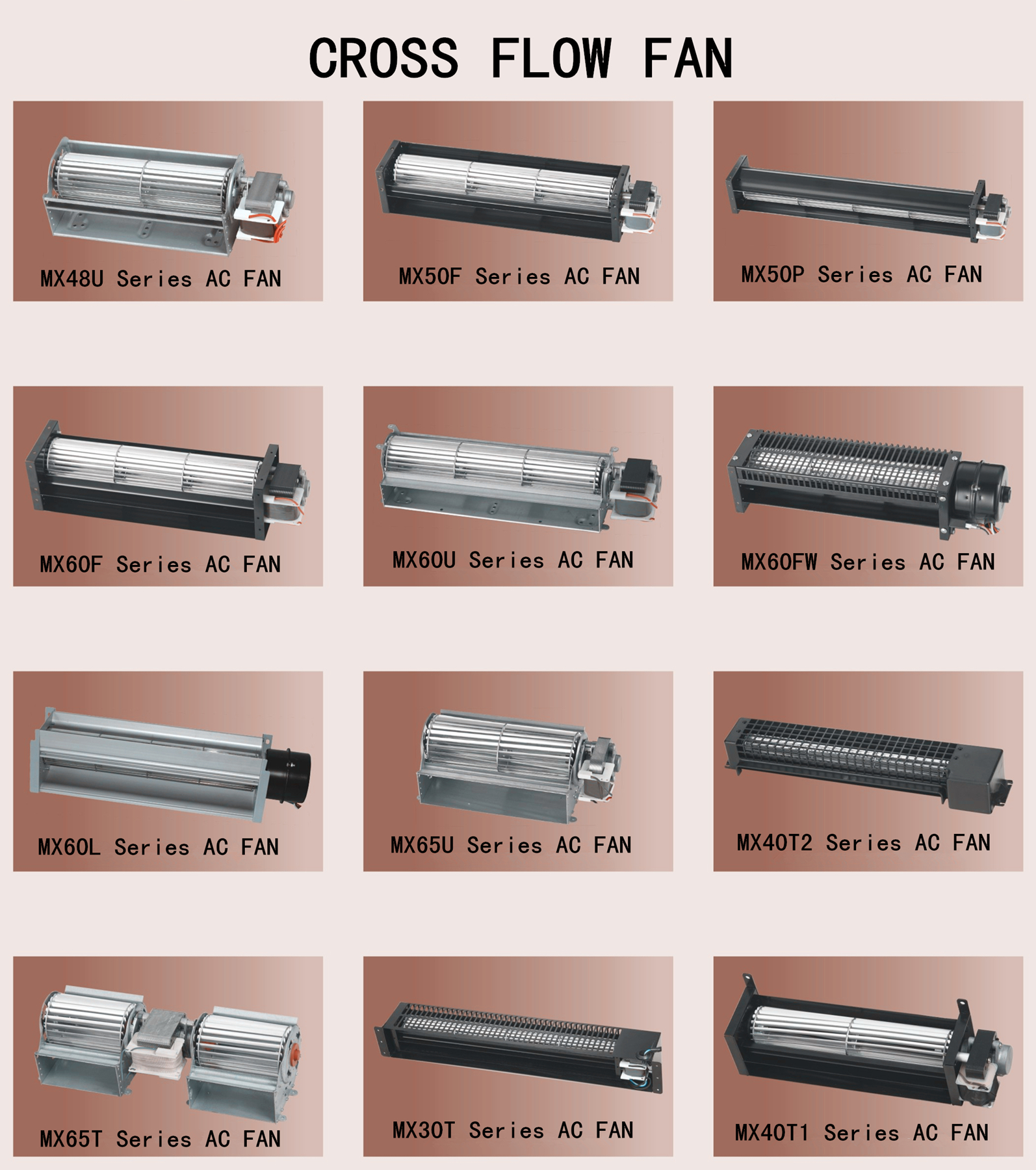

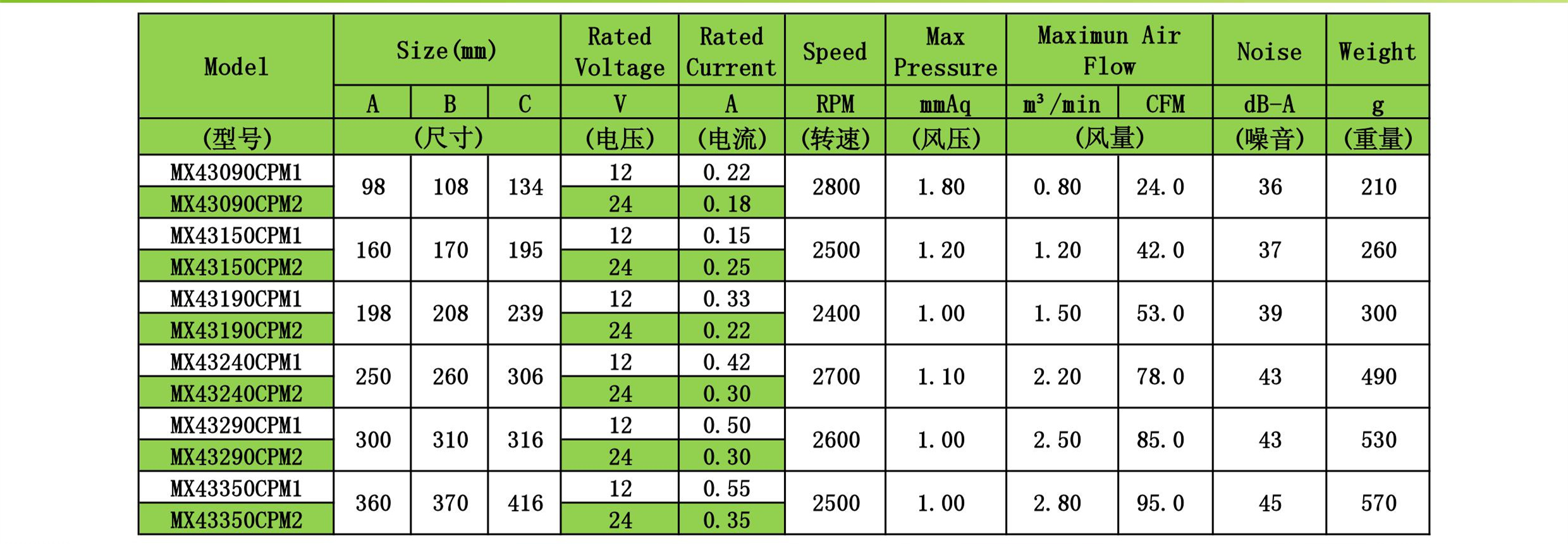

6 SERIES

Elevator Cross Flow Fans With Aluminum Impeller 43mm X 240mm / DC Flow Cooling Fans low noise and long life expectancy

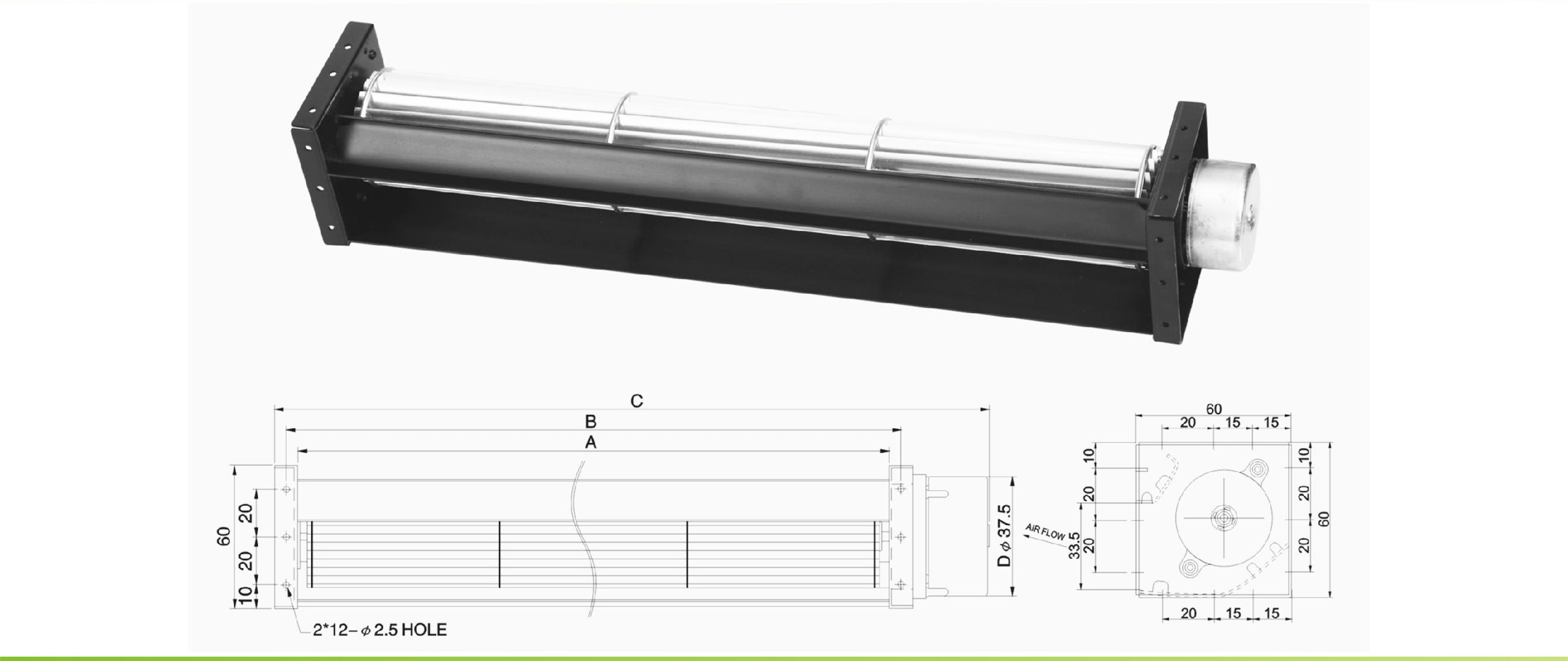

7 Dimensions

Elevator Cross Flow Fans With Aluminum Impeller 43mm X 240mm / DC Flow Cooling Fans low noise and long life expectancy

If there is something I can help you , pls kindly contact me . I will reply you ASAP .

Thanks very much !
