Equipment Radiator Cooling Fan / Tangential Cross Flow Fan With FG 50 x 350MM
1. Purpose:
It is applied in air cleaner,elevator,humidifier , laboratory,workshop,dehumidifier,projector and copy machine, etc..
2. Expeceed Life:
Ball Bearing 50,000 hours
Sleeve Bearing 30,000hours
3. ELECTRICAL CHARACTERISTICS:
ALL MEASUREMENTS PERFORMED AT25~30℃ ROOM TEMPERATURE
& 50~80%R.H.UNLESS OTHERWISE SECIFIED.
| 1 | RATED VOLTAGE | VOLTS | V | 12V DC | |
| 2 | OPERATION VOLTAGE | VOLTS | V | 8.4VDC-13.2VDC | |
| 3 | FREQUENCY | Hz | Hz | / | |
| 4 | INPUT CURRENT | AMP | A | 0.65A±10% | AT RATED VOLTAGE |
| 5 | INPUT POWER | WATTS | W | 7.8W ±10% | AT RATED VOLTAGE |
| 6 | ROTATION SPEED | RPM | RPM | 1400±10% | |
| 7 | ACOUSTICAL NOISE(AVG) | dB(A) | dB(A) | ≤42 Db | DETAILS SEE ATTACHED PAGE. |
| 8 | MAX .AIR-FLOW | CFM | Q |
149CFM | TWO-CHAMBER METHODS
DEAILS SEE ATTACHED PAGE. |
| 9 | MAX . AIR-PRESSURE | mmH2O | P |
2.5mmAq | TWO-CHAMBER METHODS
DEAILS SEE ATTACHED PAGE. |
| 10 | INSULATION
RESISTANCE | MEG.
OHM | MΩ | ＞20MΩ | BETWEEN FRAME AND TERMINAL |
| 11 | DIELECTRIC STRENGTH | | | 5Ma MAX.
AT 500V AC 60HZ
FOR 1 MINUTE | BETWEEN FRAME AND TERMINAL. |
| 12 | ROTARY DIRECTION | | | C W | |
| 13 | INSULATION CLASS | | | CLASS B | |
| 14 | LIFE EXPECTANCY | | | 30000 Hours at 25℃/65%RH | |
4. MECHANICAL
4.1.BEARING SYSTEM ------------------3 BALL BEARING.
4.2.LEAD WIRE ---------------- 1007 AWG# 22,80℃,300V, L≈390MM
+POSITIVE-------------RED
NEGATIVE-------------BLACK
FG -------------YELLOW
5. ENVIRONMENTAL:
5-1.OPERATING TEMPERATURE----------------------- -10 TO+60℃(CLASS E)
5-2.STORAGE TEMPERATURE ------------------------- -20 TO+75℃
5-3.OPERATING HOMIDITY-----------------------------------RH20%-80%
5. Specifications:
| Model | Size(mm) | Rated voltage (v) | Rated Current (A) | Speed (rpm) | Max Static Pressure (mmAq) | Air Flow (m3/mim) | Air Flow (CFM) | Noise Leve (dB-A) | Weight (g) |
| A | B | C |
| MX60120CUM1 | 120 | 130 | 185 | 12 | 0.65 | 2500 | 6.3 | 2 | 71 | 49 | 520 |
| MX60120CUM2 | 24 | 0.4 |
| MX60180CUM1 | 180 | 190 | 245 | 12 | 0.95 | 2200 | 5.9 | 2.8 | 99 | 50 | 610 |
| MX60180CUM2 | 24 | 0.5 |
| MX60240CUM1 | 240 | 250 | 305 | 12 | 0.5 | 1600 | 2.8 | 2.9 | 102 | 42 | 690 |
| MX60240CUM2 | 24 | 0.25 |
| MX60300CUM1 | 300 | 310 | 365 | 12 | 0.6 | 1500 | 2.6 | 3.5 | 124 | 43 | 780 |
| MX60300CUM2 | 24 | 0.3 |
| MX60360CUM1 | 360 | 370 | 425 | 12 | 0.65 | 1400 | 2.5 | 4.2 | 149 | 42 | 860 |
| MX60360CUM2 | 24 | 0.35
|
6: Dimensions (Unit:mm)

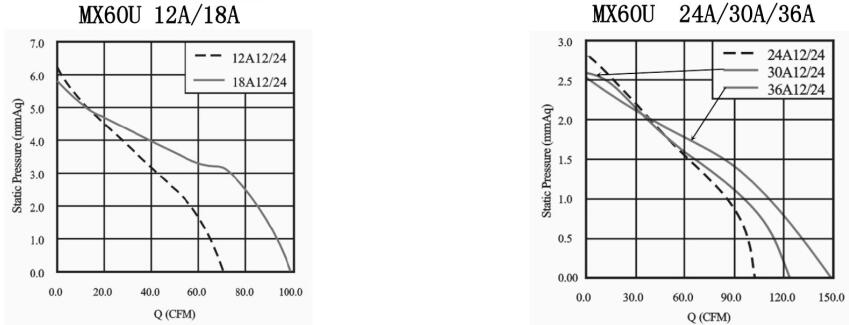

Fan Performance Curve:
7. ACOUSTICAL NOISE:

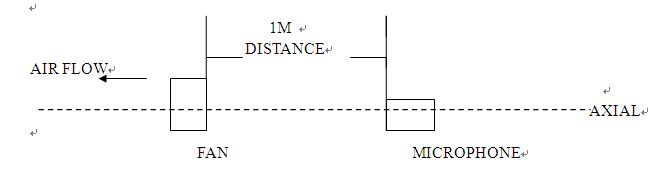

7-1. MEASUREMENT SET-UP
FAN MICROPHONE
7-2. MEASUREMENT PERFORMED IN ANECHOIC TEST CHAMBER UNDER FREE AIR CONDITION.
7-3. CHAMBER BACKGROUND NOISE 17dB MAX .
